Dennis P. Groth claims that there is not only a wealth of information within common visualization systems, but also within the user's interaction with the actual system. He states that while it is no doubt important for a single user to gain knowledge und to come to certain conclusions while using a visualization system, it is equally important that other users are can easily understand and reproduce the results. Therefore he suggests to employ a system that actually visualizes the user's interactions with the existing visualization system.
Exploring these interactions utilizes various visualization techniques for knowledge discovery in order to unveil implicit phonemes. As most exploration settings take place in a highly diverse environment employing multiple activities, individuals and locations tracking and processing is quite challenging. Commonly used interactive visualizations are not only limited to a single application in question but also disseminating findings for further exploration are not provided adequately.

The presented framework employs a fine-grained provenance tracking.

The visualization of hierarchical information structures is an important topic in the visualization community. Most of the work concentrated on the challenge to display large hierarchies in a comprehensible form.
[Groth, D.P., 2007]



Generally this framework is based on three building blocks:

  • Session (the overall block containing multiple activities)
  • Activity (represents a single application (e.g. visualization system, browser, etc.))
  • Action (User actions like zooming, rotating an image or even browsing through the web)

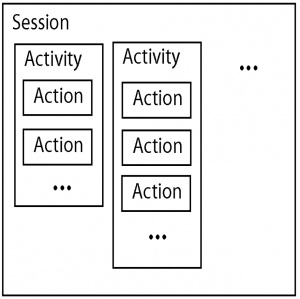

Session activity action.jpg
Schematic view of building blocks

As multiple activities arise within a session a logical linkage evolves. In general, three types of linkage are given:

  • Serial events representing a temporal order
  • Branching relations when actions are considered as logical states
  • Association when action happens across activities


From the arithmetic perspective this framework can be described as a directed graph. Nodes describes state of the system, whereby branches occur when the user reverts to an earlier state of an activity. Hence the user is able to browse through the exploration history afterwards. Edges transitions among the states. the latest implementation of proposed frameworks supports colored edges indicating different activities.

Timeline simple.jpg
Simple Timeline, temporal order

Timeline branching.jpg
Branching timeline

Annotation plays a critical role in the exploration process, in that it provides a mechanism for users to capture their observations of what they are seeing in the visualization.
[Groth, D.P., 2007]



Therefore a minor tagging theme is implemented whether tagging is manually or automatically associated with a given action. Hence another type of clustering actions and alternate graph representations are provided.

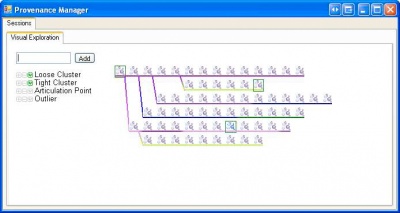

Provenance manager.jpg
Annotations via Tagging

However, this project is still in construction as further extensions are progressed. So an API is going to be provided in order to link applications in question into the provenance tracking system. Furthermore more explorations on automated tagging scheme are underway.
