A scatterplot allows effective visualization of the relation between variables in a data set.


Also called a scatter chart, scatter diagram or scatter graph [Wikipedia 1, 2008]. The most basic form of a scatterplot is a two-dimensional diagram wherein relation of two metric variables is visualized. Their values are represented by the position on the horizontal and vertical axis of a cartesian coordinate system. Every resulting point in the graph stands for one record from the underlying data set. The distribution pattern of points from multiple records reveals, among other qualities, the correlation between the selected variables in the data set.
The scatterplot is not to be confused with the correlation plot [NIST, 2008] which represents already adopted correlation coefficients in different data groups, while the term correlation diagram does not seem to be bound.

Revealed Information[edit]

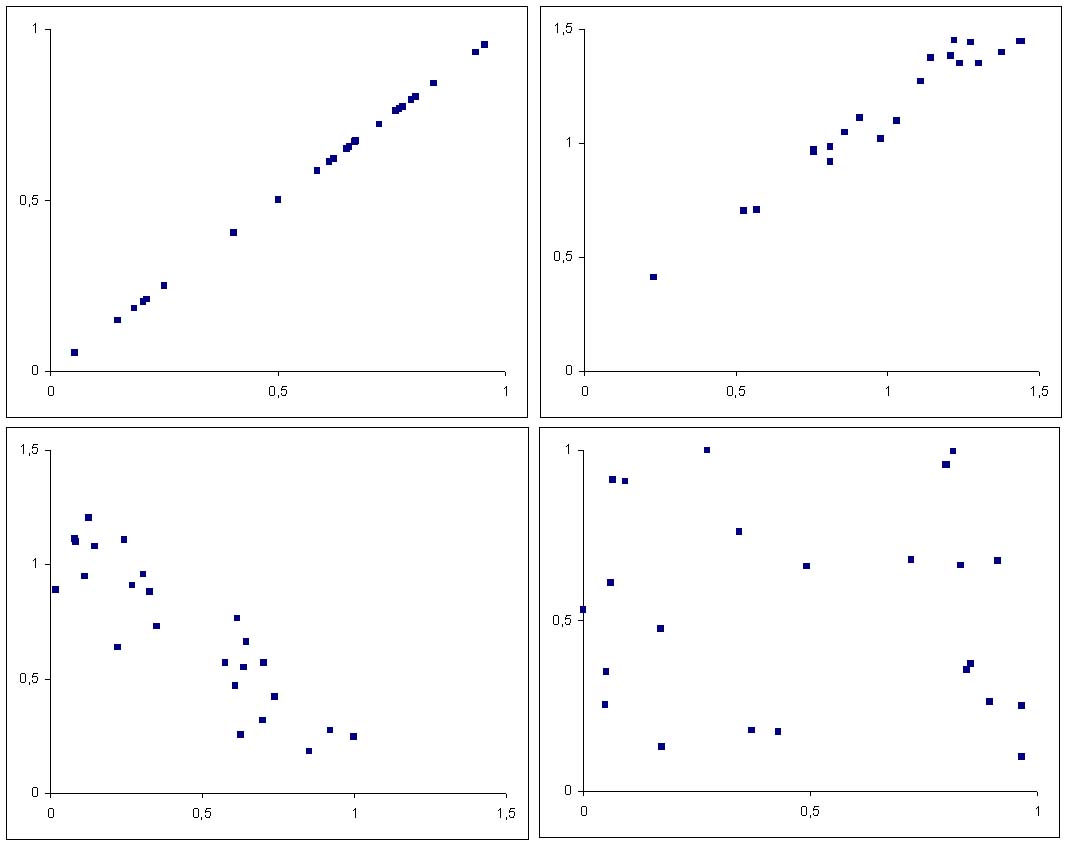

Figure 1: Some scatterplots.

The closer the data points come when plotted to making a straight line, the higher the correlation between the two variables. Perfect linear correlation of the data results in all samples lying on its regression line with positive or negative incline, dependent on the sign of the correlation coefficient [MSTE, 1997]. Note that the value of correlation reflects the noisiness and direction of a linear relationship, but not the slope of the regression line. A non zero inclince of the line must not be steep to reflect strong correlation, but a slope of 0 (horizontal line) leads to a undefined correlation, because of no variance in the y-axis. [Wikipedia 3, 2008].

An example of perfect correlation can be seen in the upper left of Figure 1 together with other patterns: Strong positive (upper right), weak negative (lower left) and one example of variables without significant correlation.

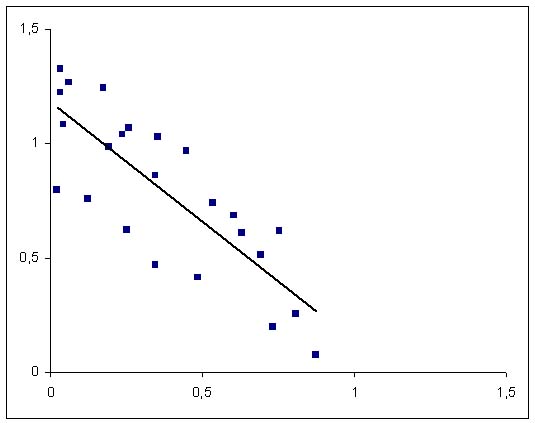

Figure 2: Regression line.

Figure 2 features a regression line to increase its expressiveness. This is the line that passes through the plot as close to the points as possible. The regression function is not necessarily chosen linear as in this example. Any kind of curve may fit a plot (quadratic curves, splines, ...) and must be chosen according to the subject matter. In general, the curve with the smallest sum of squared distances to the plotted points is sought after (least squares fitting), [NetMBA, 2008]. For an introduction on linear regression, see [Wikipedia 4, 2008] and [Wikipedia 5, 2008]. Further properties of data sets can easily be discovered by the presence of clusters and outliers as denoted in Figure 3.

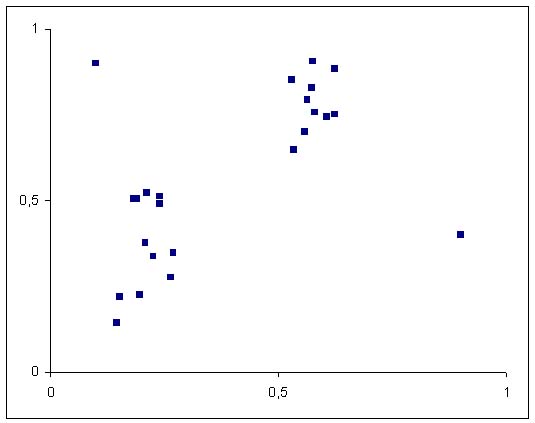

Figure 3: Clusters and outliers.

Scatterplots of Higher Dimensions[edit]

Scatterplots are not restricted to records with only two variables. Higher dimensional data can be displayed by adding a third axis to the plot, or by assigning point properties like color, size or shape. Figure 4 shows a plot done with Matlab's command "plot4D", [Lewis, 2008].

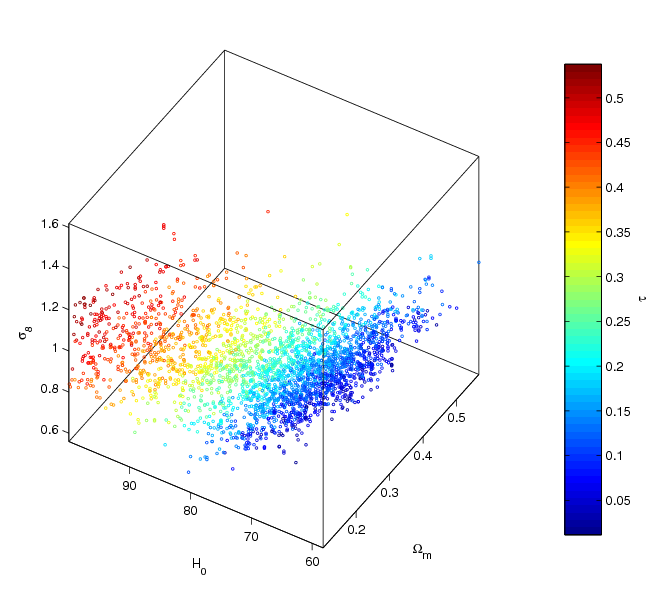

Figure 4: A Matlab 4D plot.

For another example of a three-dimensional scatterplot see [Wikipedia 1, 2008]. A way of plotting multi-dimensional data without the use of a third axis can be found in [Demsar, 2008].

Treating Discrete Data[edit]

For continuously distributed data, scatterplots do well in visualizing density. The problem with discrete data is the possibility of more than one record sharing one point in the diagram (overplotting). One solution is to alter the point representation according to density, which is achieved by sunflower plots in which each point symbol gains radial segments [Wikipedia 2, 2008]. For examples see: [Friendly, 2006] and [addictedtor, 2005].

Example of Application[edit]

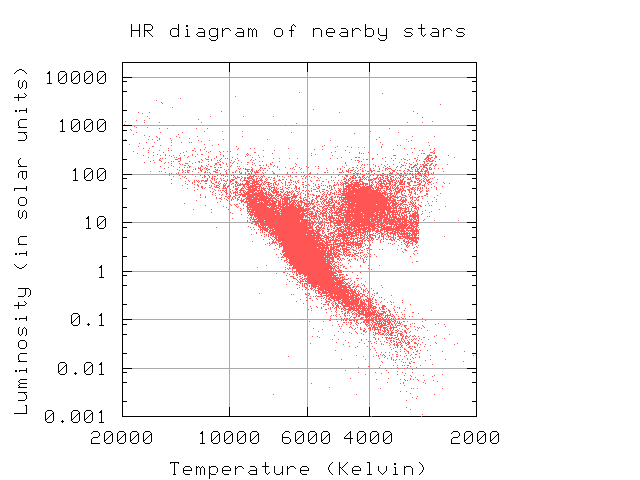

Figure 5: The HRD of some nearby stars.

A prominent example of a scatterplot with two variables is the Hertzsprung-Russell diagram (HRD) in astronomy (Figure 5). It plots absolute magnitude (intrinsic brightness) of stars against their spectral types and shows a rich set of features, such as clusters and a central filament (the main sequence), [Britannica, 2008].
